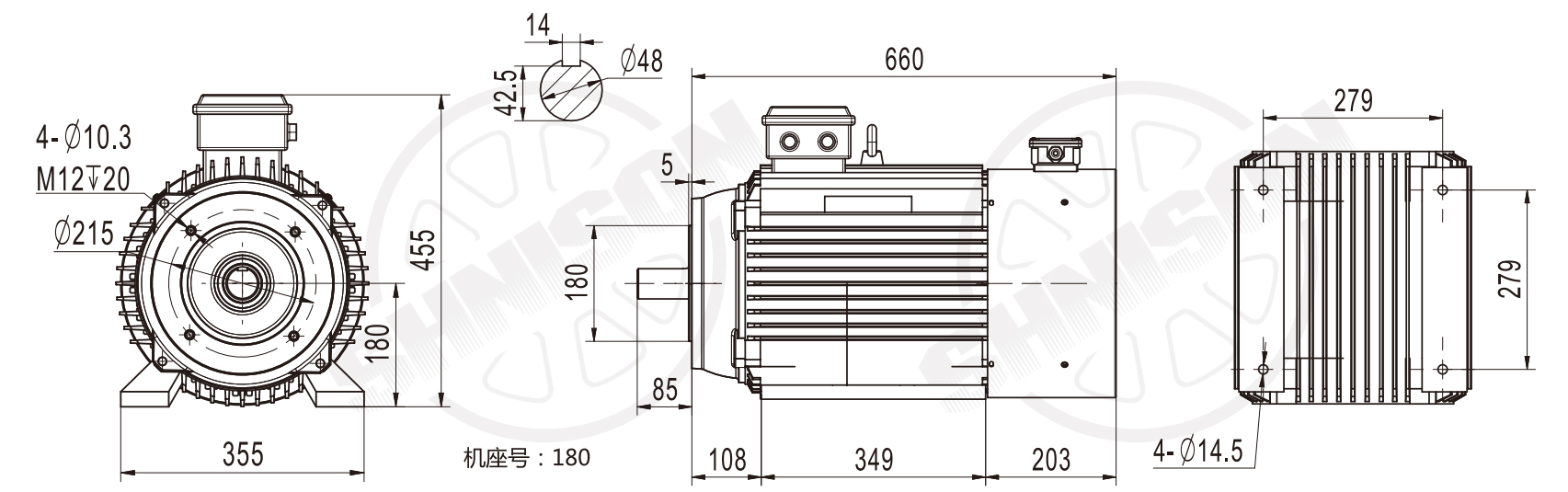

High-Reliability Variable Frequency 180 Frame Variable Frequency External Shaft B34 Flange Mount Motor-Ningbo Deyu Electromechanical Equipment Co.,Ltd.

The high-reliability variable frequency 180 frame variable frequency external shaft B34 flange mount motor is a drive device designed for demanding industrial conditions. This motor's design fully considers the specific requirements of variable frequency operation. Its optimized electromagnetic design and robust structure ensure long-term, stable operation with the inverter in complex environments.
High-grade insulation materials and wear-resistant bearings are used within the motor, and strict quality control is implemented during the manufacturing process, minimizing the risk of operational failures. This design not only extends the motor's service life but also effectively reduces maintenance costs associated with equipment downtime. Furthermore, the motor offers excellent protection and strong resistance to external environmental factors, ensuring long-term, stable operation.
Compatible with a wide range of mainstream inverters on the market, this motor ensures convenient and flexible system integration. Its external shaft design, combined with the B34 flange mounting method, makes installation and connection to the drive system more efficient, easily meeting the requirements of diverse industrial equipment.

Data:

Part. No.Codice	Motor C. shape Forma costruttiva	Rated output Pot. nominale		Speed Velocità	efficiency	Power factor	Rated torque	noise	Constant Torque frequency Range	Constant Output Frequency Range
Part. No.Codice	Motor C. shape Forma costruttiva	KW	A	RPM	Eff.%	PF	N.m	dB(A)	Constant Torque frequency Range	Constant Output Frequency Range
3ZABP1804185N-WSF	YVF180M-4	18.5	26.3	1470	91.2	0.85	120.0	83	5-50	50-100
3ZABP1804220N-WSF	YVF180L-4	22	42.9	1465	91.6	0.85	143.0	83
3ZABP1806150N-WSF	YVF180L-6	15	31.8	980	89.7	0.80	146.0	82
3ZABP1806110N-WSF	YVF180L-8	11	25.0	725	87.8	0.76	145	82
3ZABP2004300N-WSF	YVF200L-4	30	58.1	1475	92.3	0.85	194.0	85
3ZABP2254370N-WSF	YVF225S-4	37	70.5	1480	92.7	0.86	239.0	88
3ZABP2254450N-WSF	YVF225M-4	45	85.4	1480	93.1	0.86	290.0	88

Part. No.Codice	Motor C. shape Forma costruttiva	Rated output Pot. nominale		Speed Velocità	efficiency	Power factor	Rated torque	noise	Constant Torque frequency Range	Constant Output Frequency Range
Part. No.Codice	Motor C. shape Forma costruttiva	KW	A	RPM	Eff.%	PF	N.m	dB(A)	Constant Torque frequency Range	Constant Output Frequency Range
3ZABP2504550N-WSF	YVF250M-4	55	104	1485	93.5	0.86	354.0	92	5-50	50-100
3ZABP2804750N-WSF	YVF280S-4	75	139	1490	94.0	0.87	481.0	94
3ZABP2804900N-WSF	YVF280M-4	90	165	1485	94.2	0.88	579.0	94
3ZABP2006185N-WSF	YF200L1-6	18.5	38.9	980	90.4	0.80	180.0	84
3ZABP2006220N-WSF	YVF200L2-6	22	45.4	980	90.9	0.81	214.0	84
3ZABP2256300N-WSF	YVF225M-6	30	60.6	985	91.7	0.82	291.0	86
3ZABP2506370N-WSF	YVF250M-6	37	73.5	985	92.2	0.83	359.0	90
3ZABP2806450H-WSF	YVF280M-6	45	86.8	990	92.7	0.85	434.0	92
3ZABP2806550H-WSF	YVF280M-6	55	104	990	93.1	0.86	531.0	92
3ZABP3156750H WSM	YVF280M-6	75	145	990	93.7	0.84	723.0	94
3ZABP2258185H-WSF	YVF280M-6	18.5	40	735	90.2	0.78	240	86
3ZABP2258220H-WSF	YVF280M-6	22	47.4	735	90.5	0.78	286	86
3ZABP2508300N WSF	YVF280M-6	30	63.4	735	91.0	0.79	390	90
3ZABP2808370H WSF	YVF280M-6	37	77.8	740	91.5	0.79	478	92
3ZABP2808450H WSF	YVF280M-6	45	93.9	740	92.2	0.79	581	92
3ZABP31585501 W5M	YVF280M-6	55	111	740	93.1	0.81	710	94

Ningbo Deyu Electromechanical Equipment Co., Ltd. specializes in providing green and environmentally friendly solutions in the field of motors and drive systems. YVF motor, constant power heavy-duty variable frequency motor, hollow shaft variable frequency motor, hydraulic motor matching motor, single-phase 220V, 110V high-performance motor, main application fields: high-pressure cleaning, commercial cleaning, industrial high-pressure spray, air conditioning humidification, 220V hydraulic station, hydraulic system matching motor. The company has a flexible automated shaft processing production line, an integrated semi-automatic hot loading machine for automatic winding, embedding, and bundling, and a complete precision machining and testing equipment. Accumulated rich experience in the field of motor manufacturing. Our product quality, management level, and other aspects are strictly achieved according to the prescribed standards. We have won a good reputation among our customers. We will use precision casting, continuous innovation, keep pace with the times, and provide our customers with higher quality products. Customer first, innovation driven, open cooperation, realizing value for our customers, investors, employees and other partners, surpassing ourselves, and fulfilling social responsibilities!
