0.75kw 80mm Centre Middle High 1425rpm Variable Frequency Motor are made by aluminum,the diameter of stopper step cycle is 80mm,the diameter of the installing pole cycle is 100mm.There are two terminal box,can protect the motor operate quite well.
0.75kw 80mm Centre Middle High 1425rpm Variable Frequency Motor are made by aluminum,the diameter of stopper step cycle is 80mm,the diameter of the installing pole cycle is 100mm.There are two terminal box,can protect the motor operate quite well.

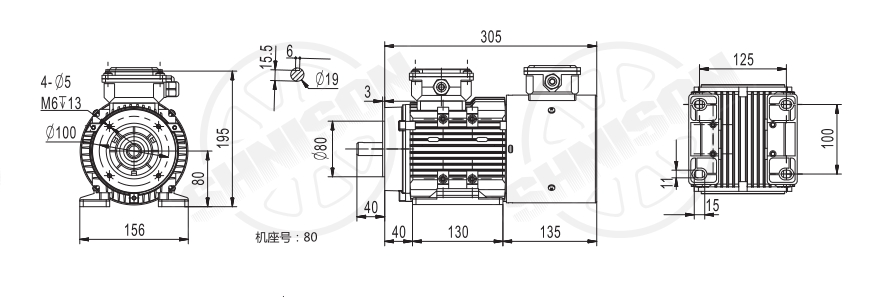

Drawing:
Data:
Model No. | Type | Power | Rated Current | Speed | Efficiency | Power Factor | Rated Torque | Noise | Constant torque frequency modulation range | Constant Output Frequency Range |
KW | r/min | Eff.% | P.F | N.m | dB(A) | |||||
3EABP804075N-WSD | YVF80M2-4 | 0.75 | 1.9 | 1425 | 79.6 | 0.76 | 5.0 | 62 | 5-50 | 50-100 |
