4kw 112mm Centre Middle High 1450rpm Variable Frequency Electric Motor are made by aluminum,the diameter of stopper step cycle is 110mm,the diameter of the installing pole cycle is 130mm.There are two terminal box,can protect the motor operate well.
4kw 112mm Centre Middle High 1450rpm Variable Frequency Electric Motor are made by aluminum,the diameter of stopper step cycle is 110mm,the diameter of the installing pole cycle is 130mm.There are two terminal box,can protect the motor operate well.

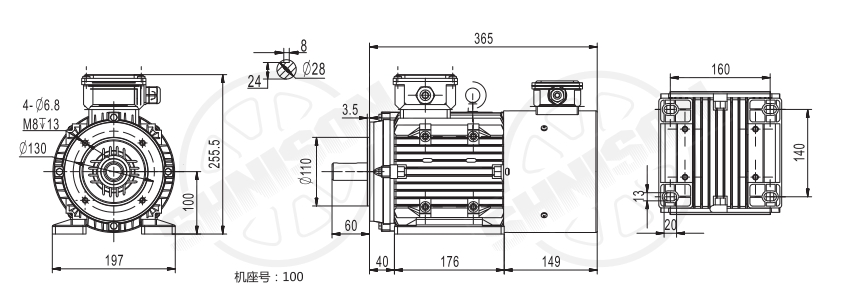

Drawing:
Data:
Model No. | Type | Power | Rated Current | Speed | Efficiency | Power Factor | Rated Torque | Noise | Constant torque frequency modulation range | Constant Output Frequency Range |
KW | r/min | Eff.% | P.F | N.m | dB(A) | |||||
3EABP112440N-WSD | YVF112M-4 | 4 | 8.7 | 1450 | 86.6 | 0.81 | 26.3 | 72 | 5-50 | 50-100 |
