0.37kw 80mm Centre Middle High 910rpm Variable Frequency Electric Motor are made by aluminum,the diameter of stopper step cycle is 80mm,the diameter of the installing pole cycle is 100mm.There are two terminal box,can protect the motor operate well.
0.37kw 80mm Centre Middle High 910rpm Variable Frequency Electric Motor are made by aluminum,the diameter of stopper step cycle is 80mm,the diameter of the installing pole cycle is 100mm.There are two terminal box,can protect the motor operate well.

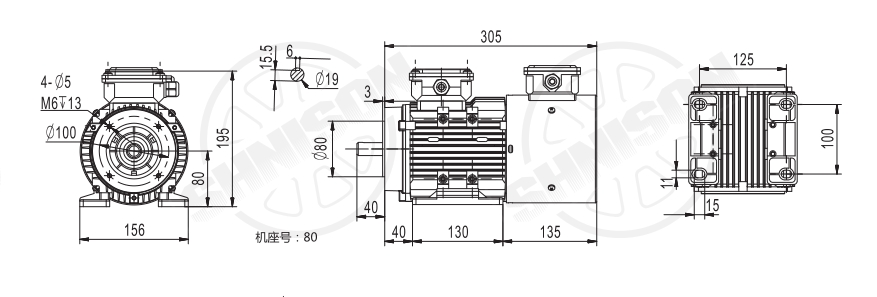

Drawing:
Data:
Model No. | Type | Power | Rated Current | Speed | Efficiency | Power Factor | Rated Torque | Noise | Constant torque frequency modulation range | Constant Output Frequency Range |
KW | r/min | Eff.% | P.F | N.m | dB(A) | |||||
3EABP086037N-WSD | YVF80M1-6 | 0.37 | 1.2 | 910 | 67.0 | 0.70 | 3.9 | 61 | 5-50 | 50-100 |
