3EAC Three-Phase Asynchronous Horizontal Motor

Home / Products / Three Phase Electric Motor / 3EAC Three-Phase Asynchronous Horizontal Motor / 1.5kw 3 Phase Inner Hollow Shaft 230V 440V 3A Aluminium Electric Motor
View All Projects
1.5kw 3 Phase Inner Hollow Shaft 230V 440V 3A Aluminium Electric Motor

1.5kw 3 Phase Inner Hollow Shaft 230V 440V 3A Aluminium Electric Motor

  • 1.5kw 3 Phase Inner Hollow Shaft 230V 440V 3A Aluminium Electric Motor
  • 1.5kw 3 Phase Inner Hollow Shaft 230V 440V 3A Aluminium Electric Motor
View All Projects
PREV：1.1kw 6P 3 Phase Inner Hollow Shaft 230V 220V 380V 400V 440V 690V 90mm Connecting Plate Aluminium Electric Motor
NEXT：600 stator for Home use electric motors for 0.55kw 6p low speed 50hz 60hz frequency

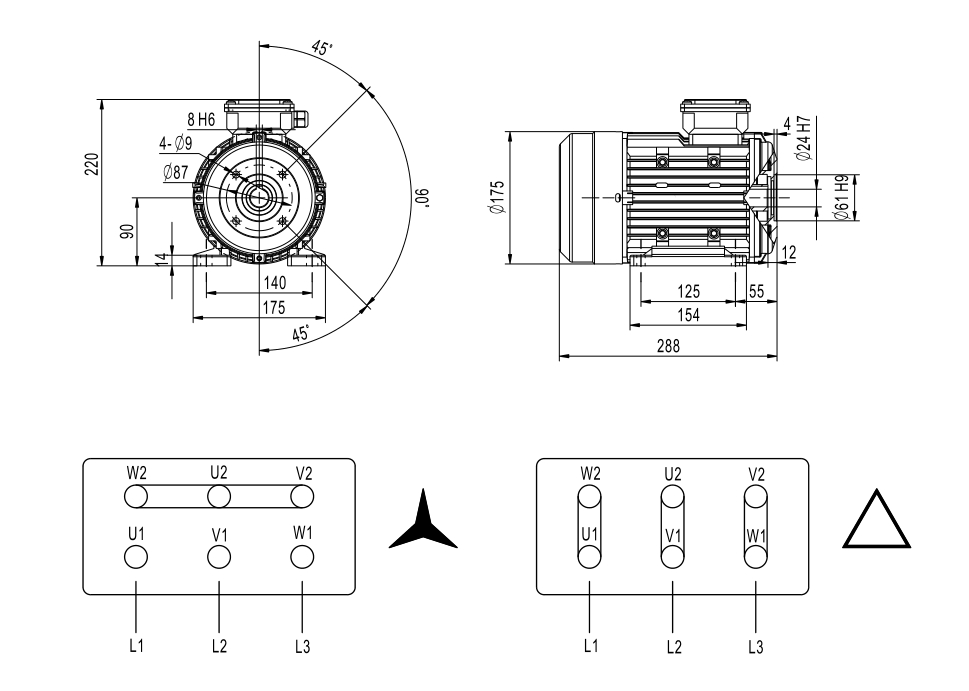

This product is a 1.5kw 3 Phase Inner Hollow Shaft 230V 440V 90mm Diameter of Flange Connecting Plate Aluminium Shield Electric Motor, model 3EA09415C-WSD, designed for industrial applications and suitable for a variety of mechanical equipment and automation systems. The motor combines high efficiency and reliability, and is widely used in the drive of equipment such as pumps, fans, compressors, etc., to meet the needs of different working environments.
The rated frequency of the motor is 50Hz/60Hz, ensuring its applicability worldwide. The rated power is 1.5kW, which is suitable for the drive of small and medium-sized loads, has a high energy efficiency ratio, and can effectively reduce operating costs. The rated voltage range of the motor is 200-230/220-380/380-440/690V, which is suitable for a variety of power systems and ensures stable operation under different voltage conditions.
The flange installing way is B34,the installing way of front flange shield can be 4 fixation or 3 fixation,it has good starting performance and stable operation, and is suitable for long-term continuous operation. The cooling method is IC01, which ensures that the motor can maintain a suitable operating temperature under high load conditions and prolongs its service life. Its installation method is B34, which is convenient for integration with existing equipment, reduces installation difficulty, and improves installation efficiency.
