1.1kw 8P 710rpm 720rpm 3 Phase Motor C. Shape Hollow Shaft Electric Motor for 12l/min Pumps -Ningbo Deyu Electromechanical Equipment Co.,Ltd.

1.1kw 8P 710rpm 720rpm 3 Phase Electric Motor, model 3EA10811C-WSD, designed for industrial applications and suitable for a variety of mechanical equipment and automation systems.It can connect the 8l/minute water flow pumps,like NHDP,RR,RC.The diameter of connecting plate is 90mm,the diameter of the installing pole cycle is 75mm.The motor combines high efficiency and reliability, and is widely used in the drive of equipment such as pumps, fans, compressors, machines like outdoor humidifier,summer temperature cooling and dust removal equipment,fields like machine tool parts,coal mining,blender,air pressure machine,speed control machine,elevator,sea boat,punching machine,lathe,printing and so on, to meet the needs of different working environments.The noise level is 8P,can be very quiet.

The rated frequency of the motor is 50Hz/60Hz, ensuring its applicability worldwide. The rated power is 1.1kW, which is suitable for the drive of small and medium-sized loads, has a high energy efficiency ratio, and can effectively reduce operating costs. The rated voltage range of the motor is 200-230/220-380/380-440/690V, which is suitable for a variety of power systems and ensures stable operation under different voltage conditions.
The flange installing way is B34,the installing way of front flange shield can be 4 fixation or 3 fixation,it has good starting performance and stable operation, and is suitable for long-term continuous operation. The cooling method is IC01, which ensures that the motor can maintain a suitable operating temperature under high load conditions and prolongs its service life.

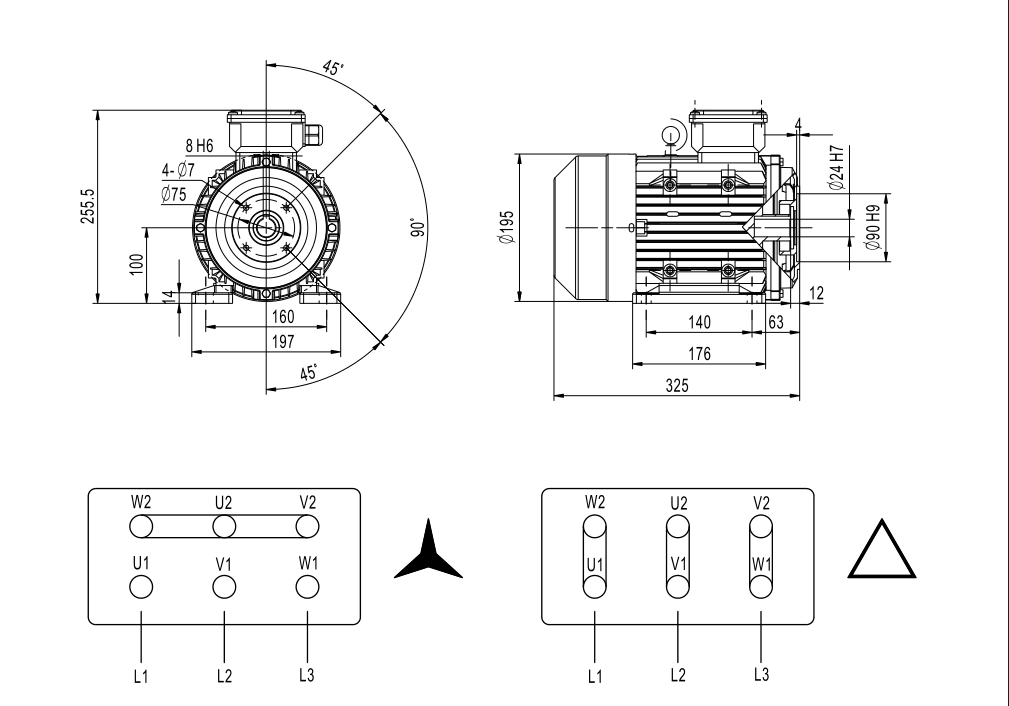

Drawing:

Data:

Model No.	Type	Output		Speed	Voltage	Frequency
		HP	KW	r/min	V	HZ
3EA10811C-WSD	YE3-100L2-8 C	1.49	1.1	680	200-230/220-380/380-440/690	50/60

Ningbo Deyu Electromechanical Equipment Co., Ltd. specializes in providing green and environmentally friendly solutions in the field of motors and drive systems. YVF motor, constant power heavy-duty variable frequency motor, hollow shaft variable frequency motor, hydraulic motor matching motor, single-phase 220V, 110V high-performance motor, main application fields: high-pressure cleaning, commercial cleaning, industrial high-pressure spray, air conditioning humidification, 220V hydraulic station, hydraulic system matching motor. The company has a flexible automated shaft processing production line, an integrated semi-automatic hot loading machine for automatic winding, embedding, and bundling, and a complete precision machining and testing equipment. Accumulated rich experience in the field of motor manufacturing. Our product quality, management level, and other aspects are strictly achieved according to the prescribed standards. We have won a good reputation among our customers. We will use precision casting, continuous innovation, keep pace with the times, and provide our customers with higher quality products. Customer first, innovation driven, open cooperation, realizing value for our customers, investors, employees and other partners, surpassing ourselves, and fulfilling social responsibilities!
